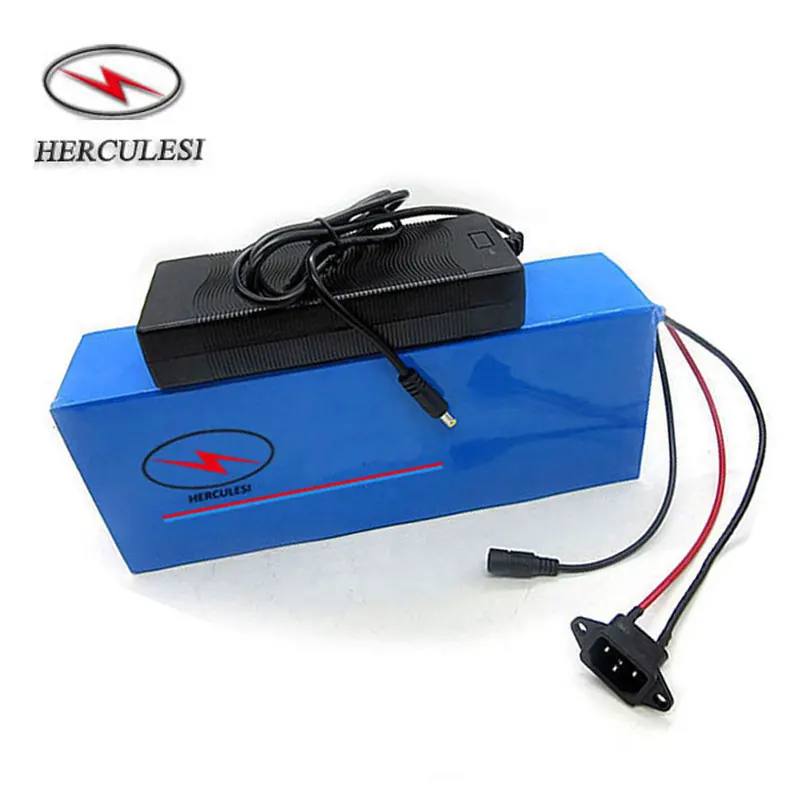

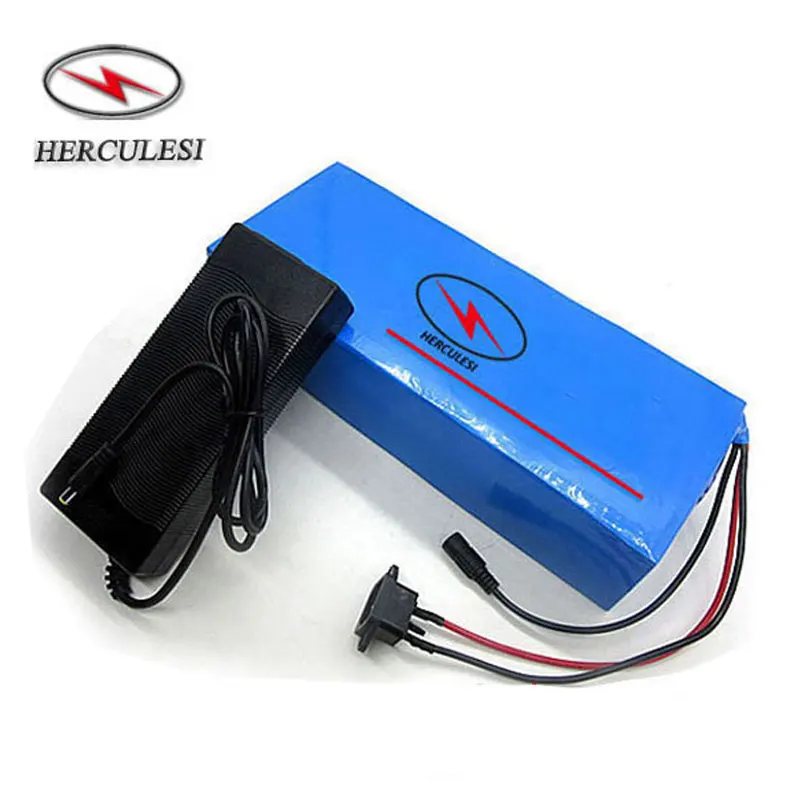

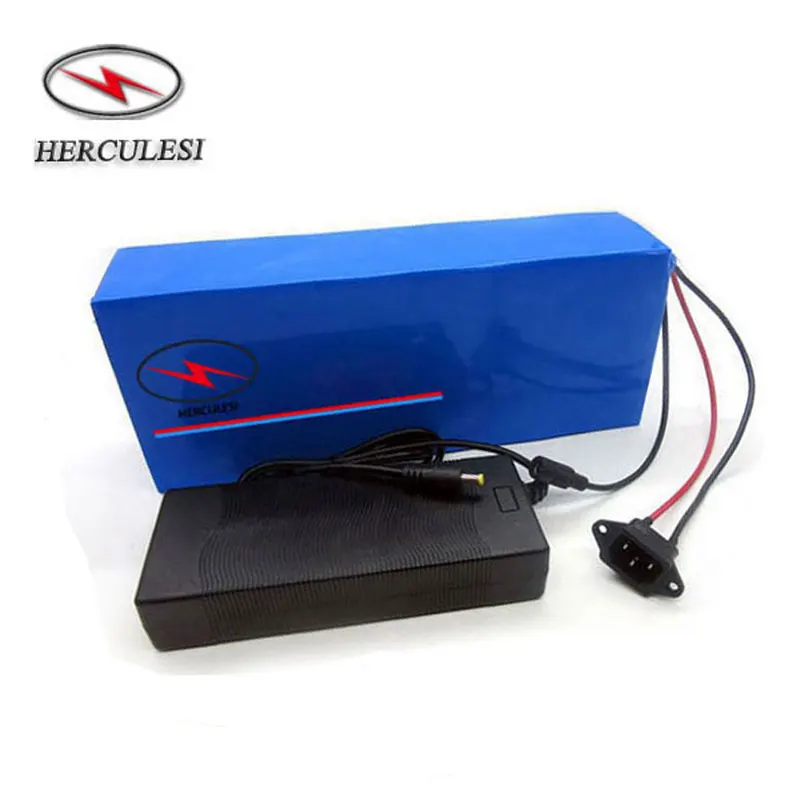

Electric Bike Battery 72V 30Ah 20S10P NCR18650PF Lithium Ion Battery Pack with 80A BMS For 5000W Enduro Ebike Hub Motor Material Lithium Ion Battery (LiNiCoMnO2) Nominal Voltage 72V Nominal Capacity 29Ah Cell Assembly Panasonic NCR18650PF 2900mAh (10A discharge) 20 series with 10 parallel Built-in BMS (20S 80A BMS) Over-charge & dischargeprotection. Temperature control function. Short circuit protection. Balances the cells and ensures long cell life. Charge Charge Model CC / CV Charge Current 2A / 5A Charger BMS Charge Cut-off Voltage 84V Cell Overcharge Protection Voltage 4.2V / Cell Discharge Max Continuous Discharge Current 80A Peak Discharge Current 160A BMS Discharge Cut-off Voltage 56 +/-1V Cell Over-discharge Protection Voltage 2.8V / Cell Working Temperature Charge Temperature Range 0~45°C DischargeTemperature Range -20~60°C Cycle Life 800~1000 cycles Our certifications ISO9001, UL 1642,CE, ROSH Dimension 240*220*160 mm Weight 10~10.5 Kg Application Electric Bike, Scooter, Motorcycle... Warranty 13 Months Part Included 1×72V30Ah Lithium IonBattery 1×84V5A Charger -Panasonic PF,a decent capacity, inexpensive, high discharge rate cell.With a 2900mAh capacity and a 10Amp continuous discharge. - 80 Amp max continuous balancing function built-in BMS - Use high quality red copper plates, not just common nickel strips - The excellent way of cell combination make sure the strong stability and nice performance of the battery - Add cell grid holder to make the battery more stronger, protect the battery pack from damage. The large air gaps between the cells means your pack will run much cooler and the temps will be more even throughout the pack, this is by far the biggest benefit. 20S10P Panasonic PF 72V 29Ah pack size, 2 solutions for choice. But we would highly suggest add cell grid holder. - Hot Glued pack : 220 x 200 x 140 mm - Plastic Stenciled pack : 240 x 220 x 160 mm Herculesi is one of white hair for battery business in China since 2008. 1. "Quality is our culture", passed ISO9001, UL 1642, CE, ROSH 2. "With us your money in safe, your bussiness in safe", full refund in case of bad quality. 3. OEM is also welcome in our factory! 4. "Quality is the soul of an enterprise", CE ROSH UN38.3 MSDS can be provided if needed. 5. Fully 13 months warranty with good after customer services. 6. Down tube/ Rear Carrier / Folding / Under Saddle E-Bike, Scooter, Motorcycle, Boat, Wheelchair, Solar Storage, EV, RV, Forklift LiFePO4 battery solution available. We provide high quality battery to clients all over the world and help cleints deliver battery from China to them by sea and by air at reasonable price. Also we provide necessary technical solution and warranty to you! Warnings Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by. Donot use or leave the battery near a heat source as fire or heater Use the battery charger specifically for that purpose when recharging. Do not reverse the position and negative terminals. Do not connect the battery electrodes to an electrical outlet. Do not discard the battery in fire or a heater. Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects. Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc. Do not strike, trample or throw the battery. Do not directly solder the battery and pierce the battery with a nail or other sharp objects. Delivery & Shipping All batteries will be produced upon order confirmed, they will be sent out within 7 days after the payment verification.Shipping Time depends on destination and other factors. Free Shipping and FreeCustoms Taxes toUSA, UK, EU countries, Australia, Thailand, Dubai.... We are not responsible for any customs tax if occurs, but we will declare a reasonable low value to help buyer reduce it.
