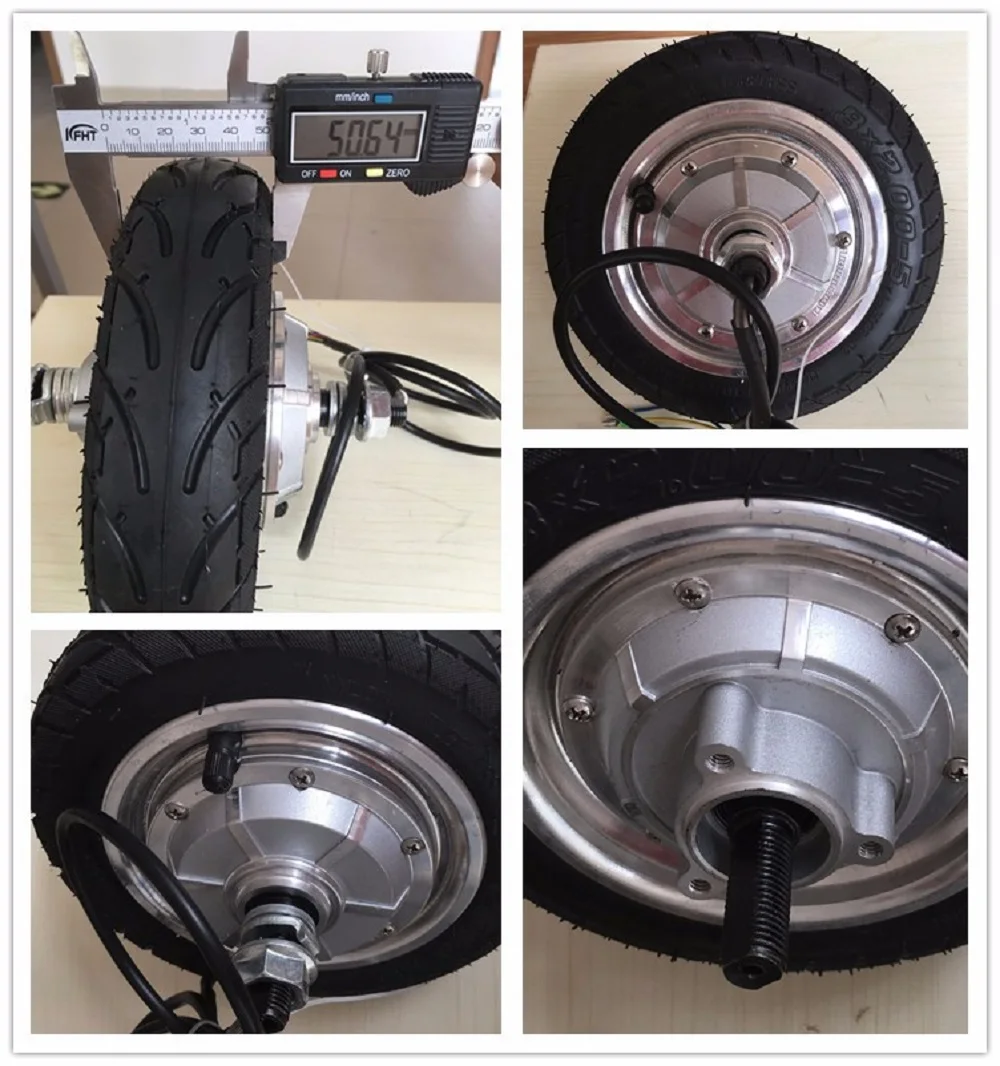

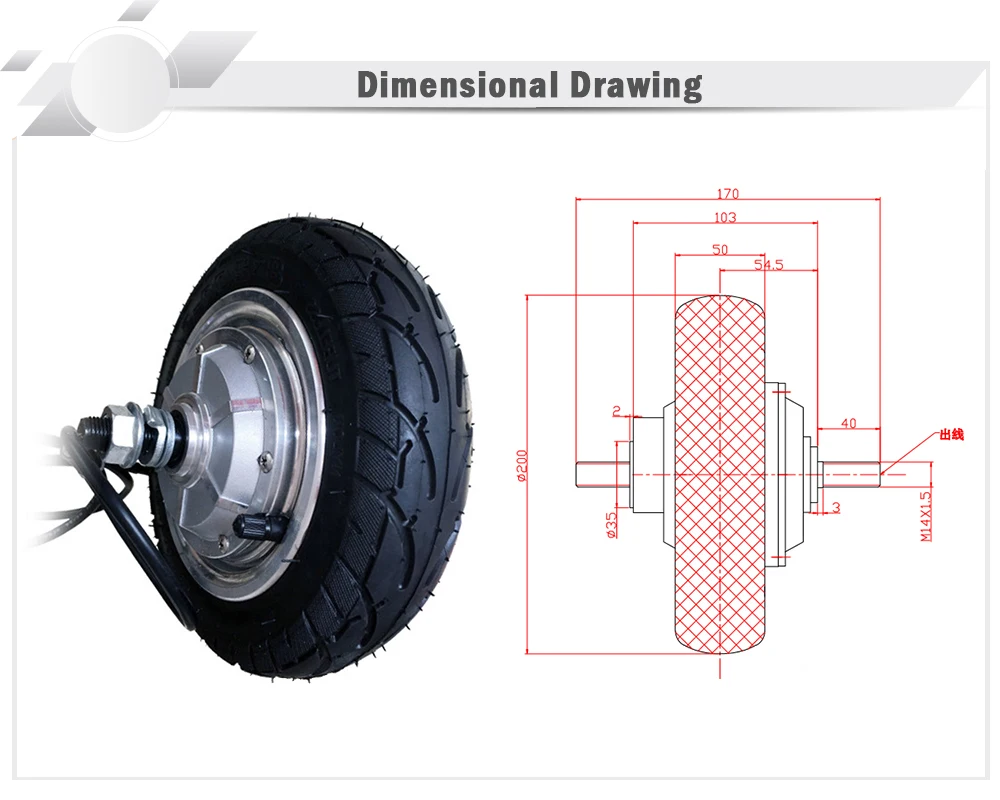

Brand:ANNOYBIKE Application:Motorcycle/E-scooter/Electric bicycle/ Wheelchair/ Electric tricycle/etc. Features: 1. The kit has two drive wheel and they will be adjusted at same time through twoparallel controllers. The total Load Weight can achieve 200-300kg. 2. This electric handlebar can adjust the motor wheel for forward or backworddirection. 3. The LCD display can show the Speed/Distance/ RPM/ Power... And it can let you adjust the Speed for different level: Each assist gear has different max output power, 1-5 power rate: 1 gear 20% speed 2 gear 40% speed 3 gear 60% speed 4 gear 80% speed 5 gear 100% speed Specification: Motor:8 inch Brushless Gearless motor (BLDC motor can give you a longer runing life) Hallsensor:YES (5 hall sensor wires that make your motor be moreSensitive, and be controlled quickly) Braketype:V/Discbrake (can make the Brake moreSensitive and quickly) Motor wheel size( include the tire): 8 inch (best size for the scooter) Tire Model:200*50-5Vacuum tire Tire Width: 50mm Max Torque: 11 N.M Rated power : 250W-350W Rated voltage： 24V-48V Speed : 12---28km/h Rotating speed : 250---1000 RPM Diameter : 200 mm Open file : 95 mm Weight : about 4kg Material: 1. wheel: standard international A356 aluminum heat treatment. 2. magnetic steel: standard 38H 3. iron core: DW350 lamination 4. Hall: Honeywell can resist high temperature: 150 If you need the other Voltage or Power8 inch motor set, please see this link: https://annoybike.aliexpress.com/store/group/8-inch-Wheel-Size/1656295_503661022.html?spm=2114.12010615.0.0.1644b6f2qGOQQ6 Packing List: 1* 8inch hub motor wheel ( together with the200*50-5Tyre) 1* 8 inch front wheel ( without motor) 1* controller 1* LCD ( show the power/ speed/ RPM, and can adjust the speed) 1* throttle(Thumb throttle without reversing function; Twist throttle with reversing function) 1 pair brake lever 1* Disc brake( 120mm disc brake and the caliper) Note： All the shipping way won't allow the item with gas go to there aircraft. So all the wheels are without gas to arrive to you. When you get it, please inflate the wheel firstly. Note: Single shaft motor shaft isnon-threaded Double shaft motor shaft is threaded If you need thread model on the single shaft motor, please leave message when you make order. Or we will send the non-threaded single shaft model to you How to adjust the LCD display: P0= 24; P1= 8; P2=10; P3=1; P4=0
