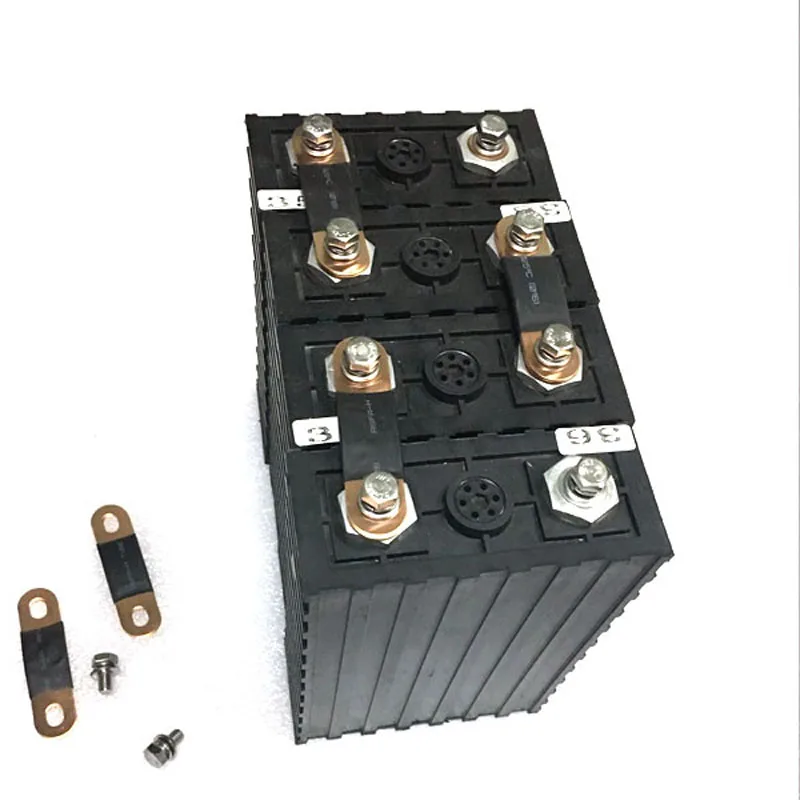

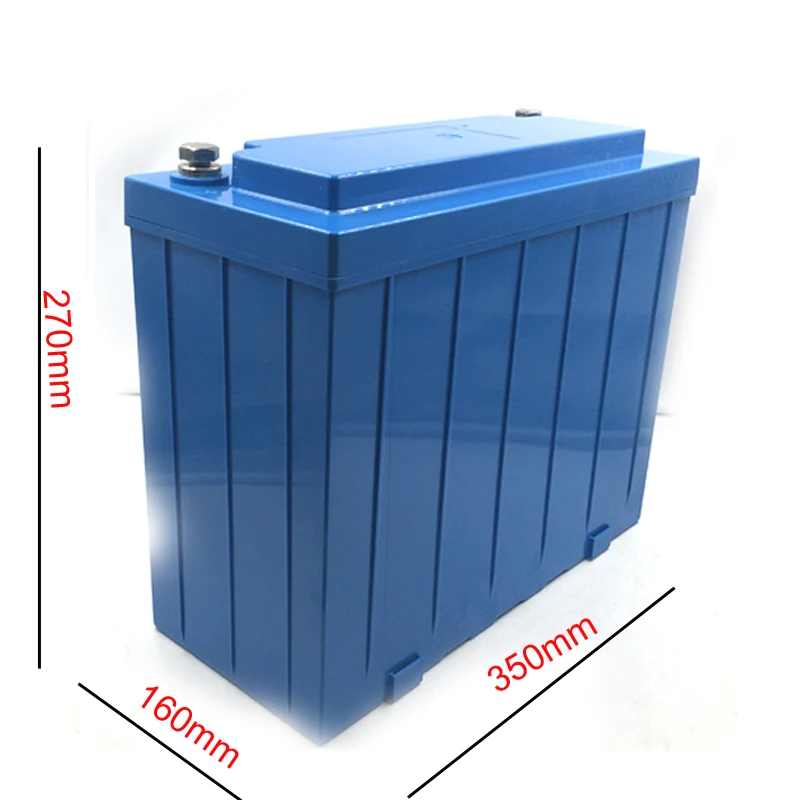

Electric Nominal voltage 12.8V Nominal capacity 180AH Stored energy 360Wh/600WH/1200WH Can be customized Internal resistance ≤ 50mΩ Cycles >2000 cycles (see chart) Self discharge < 3% per month Energy efficiency > 96% Standard Charge Charge voltage 14.6V ± 0.1V Charge mode CC/CV : Constant Current / Constant Voltage Continuous charge current / Maximum charge current 30A/100A(can be customizED） BMS charge cut-off voltage 14.6V ± 0.1V Standard Discharge Continuous discharge current 30A（Can be customized)）50A/100A Maximum discharge current 100A （<5S）(can be customized) BMS discharge cut-off voltage 10.0V Environment Charge temperature range 0°C à 45°C @60±25% relative humidity Discharge temperature range -20°C à 60°C @60±25% relative humidity Storage temperature 0°C à 40°C @60±25% relative humidity IP protection level IP 56 Mecanical Cell assembly 26650 3.2V 3300MAH 4S32P Casing material ABS Dimensions 260(L)*158W)*246(H)mm Weight 18.5KG Terminal M8 Major applications: Telecommunications Cordless phones, cellular phones, transceivers and pagers. Audio and Video Devices Digital cameras, Camcorders, Portable DVD, VCD, MD and CD palyers. Lightings Emergency lightings, Solar lights, Search lights and Flashlights. Remote Control Toys R/C Cars, R/C Ships and Model planes. Information Devices Notebook computers, Personal facimile machines, PDAs. Power Tools Electric drills, Sanders, Screwdrivers, Saws, Polishers. Other Applications Electric bicycles, Shavers, Massagers, Electric tooth brushes, Handheld vacuum cleaners, Handheld terminals. Advantage: 1)Longcyclelife 2)Maintenance-freeoperation 3)Goodsafetyperformance 4)Lowself-dischargeandfastcharge 5)Environmentfriendly 6)Highcapabilityandstability 12v lifepo4 battery,lifepo4 battery,аккумулятор для электромобиля Wecouldproducethebatterywhosevoltageandcapacityinvarietyofmodelmultiplesaccordingtoclient’srequirement. Sharesome12V batteryModulewithyou. Mainuses: Largeelectricvehicle:electricgolfcarts,buses,electriccars,sightseeingcarsandhybridvehicles Lightelectricvehicle:electricbicycle,smallflatelectriccar,forklift,cleaningvehicles,electricwheelchair Powertools:electricdrill,electricsaw,lawnmower Remotecontrolcars,boats,aircraftandothertoys Solarandwindpowerenergystorageequipment UPSandemergencylights,warninglights,miner'slamp(bestsafety) lithium ion battery 12v,lifepo4 battery 100ah,lifepo4 100ah,lifepo4 battery 12v,lifepo4-battery-100ah, This is the BMS of 4S with 30A/50A/100A continuous discharge current Lithium BMS/PCM/PCB battery management system. For the assembly of the nominal voltage 3.2V LiFepo4 batteries (4s) NOTE: customize service provide , We can design the voltage and discharge current as you need , Please feel free to contact us ! Battery Description: Lithium LifePo4 Battery 12.8V; 14.4V; 12V; 14.6V voltage are the same for the same kind of battery, the battery parameters are the same, the charge / discharge performance are the same Scope: 12.8V (3.2V * 4 series) LifePo4 batteries 14.4V (3.6V * 4 series) LifePo4 batteries 14.6V (3.65V * 4 series) LifePo4 batteries Available combination of cylindrical LifePo4 3.2v ; lithium LifePo4 composition; square LifePo4 combination parameter: Single maximum protection voltage: 3.65V ± 0.025V Single minimum protection voltage: 2.50V ± 0.1V Stable operating current: 30A/50A/100A Maximum instantaneous current: 60A/100A/200A Protection: over-charge protection; over-discharge protection; over-current protection, short circuit protection Product parameters: · Over-discharge release: disconnect the load, and each cell voltage is higher than the over-discharge threshold · Overcurrent release: Disconnect load release. · Size: rational allocation based on the operating current and customer requirements · Short circuit protection function: to protect, disconnect recoverable. · Main features: over charge protection, over-discharge protection, short circuit protection, overcurrent protection, balancing. · Overt emperature : Normal current temperature rise:45-60ºC; protection :80-90ºC. No. Test item Criterion 1 Voltage Charging voltage DC:14.6V CC/CV Balance voltage for single cell 3.5V 2 Current Balance current for single cell 50mA Current consumption ≤8μA Maximal continuous charging current 30A/50A/100A Maximal continuous Discharging current 30A/50A/100A 3 Over charge Protection Over charge detection voltage 3.75±0.025V Over charge detection delay time 1.2S Over charge release voltage 3.6±0.025V 4 Over discharge protection Over discharge detection voltage 2.1±0.05V Over discharge detection delay time 144mS Over discharge release voltage 2.3±0.05V 5 Over current protection Over current detection voltage 197±15mV Over current detection current 30.5±3.5A Detection delay time 9ms Release condition Cut load 6 Short Circuit protection Detection condition Exterior short circuit Detection delay time ≤320us Release condition Cut load 7 Resistance Protection circuitryMOSFET ≤4mΩ 8 Temperature Operating Temperature Range -40+85 Storage Temperature Range -40+125 We use 3.2v 100ah 3c cell For battery pack 1.Light electricvehicles: such as electric bicycle, golf car, small-scale electric flat car, forklift, cleanness car, electric wheelchairs 2. Large-scale electric vehicles: such as bus, electric car, tourist car and commix car 3. Electric tool: electric drill, electric saw, lawn mower 4. Remote control cars, boat, aircraft, toys, 5. Solar and wind power generation energy storage devices 6. UPS emergency lights, warning lights and miners lamp 8. Small medical equipment and portable equipment experience We have more than 10years experience in producing Nicd&NiMH&Lithiumbattery cell and pack,7years of experience to manufacture Lithum ionbattery,thefactorypassedISO 9001:2008 certification. Strict process management and control Each process for making battery wereunder strict managementand control,all of the battery wereunder full inspection before delivery. After-sales service Support prompt shipment and sample quality products,track the cargo in time after delivery.Morethanone year Guarantee,there are safety and operating instructions for your reference. Quickresponsetoclients'enquirieswithin12hrs •Tailor-madesolutionprovidedbyourexperiencedteamandprofessionalengineers for lithium polymer battery •Morethan10yearsexperienceinproducingbatteryproductsforvariousapplication. •Valuequalityandlong-termcooperationtoreachwin-winrelationship.
